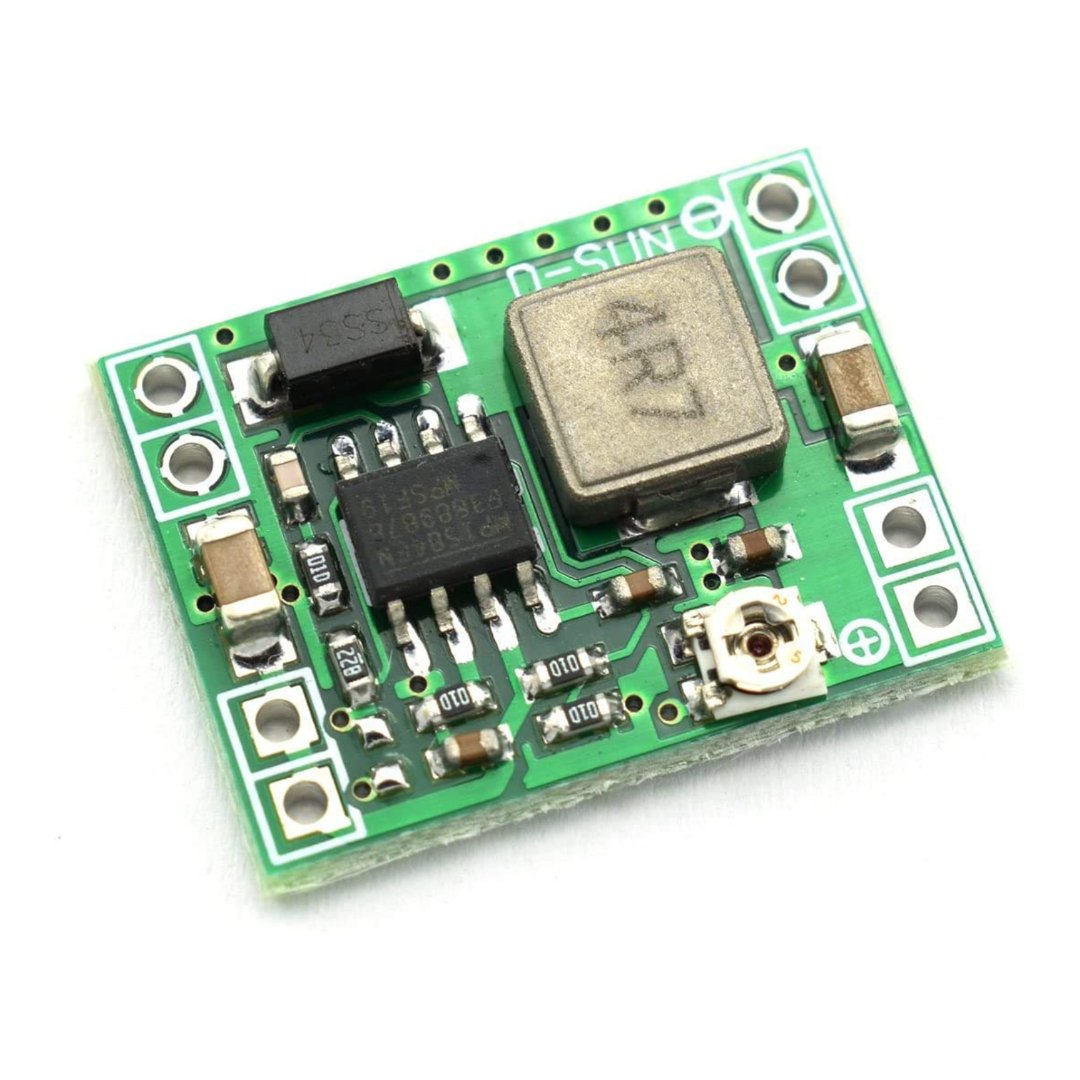

Mini MP1584EN DC-DC Buck Converter Adjustable Power Supply Module 24V to 12V 9V 5V 3V

Brand: Robo Inventors

33 review

MRP : ~~350.00~~

Price : 199.00 FREE Delivery ( Inclusive of all taxes )

You Save: 151

Sold By: Unicorpse

High Quality: MP1584EN Buck Converter come with stability, consistency and reliability.
Wide Application: MP1584EN DC-DC Buck Converter ideal for DIY mobile power, monitor power supply, power buggies, camera power supply, car power, communications equipment supply etc.
Input voltage: 4.5V to 28V; Output voltage: 0.8V to 20V
Flexibility & Safety: MP1584EN Buck Converter Adjustable Power Step Down Module for little LED or arduino projects, DIY mobile power supply.
MP1584EN DC-DC Buck Converter are adjustable current limiting, fixed 3A current limit.

10 Available

Add to Cart

Buy Now

SKU: TH2131TH204

Categories:Robotics, Sensor

Tags : MP1584EN, Power Supply , Module

The MP1584 is a high frequency step-down switching regulator with an integrated internal high-side high voltage power MOSFET. It provides 3A output with current mode control for fast loop response and easy compensation. The wide 4.5V to 28V input range accommodates a variety of step-down applications, including those in an automotive input environment. A 100µA operational quiescent current allows use in battery-powered applications.

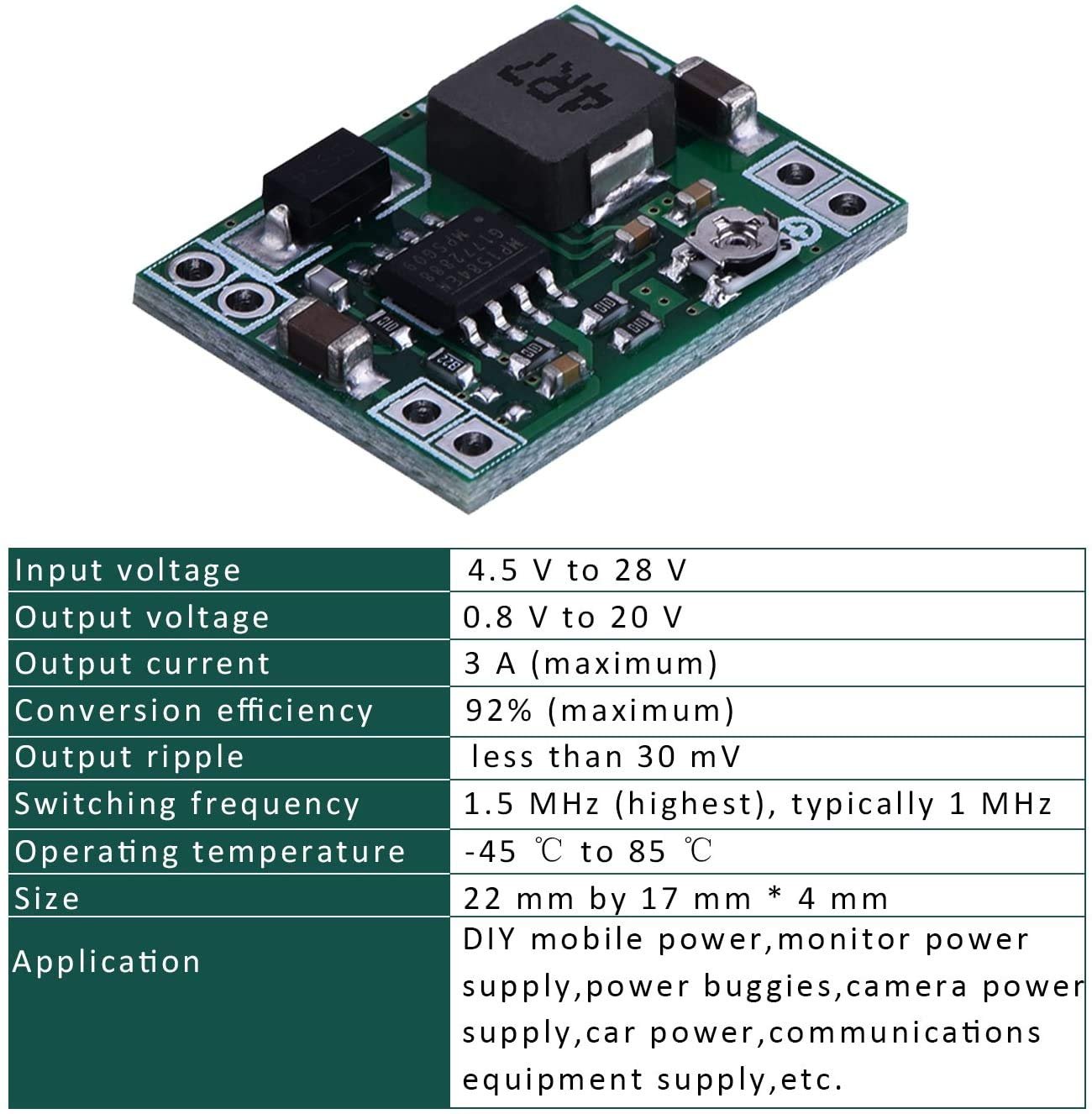

Specification:

Module Name: Mini MP1584EN DC-DC Step Down Buck Converter

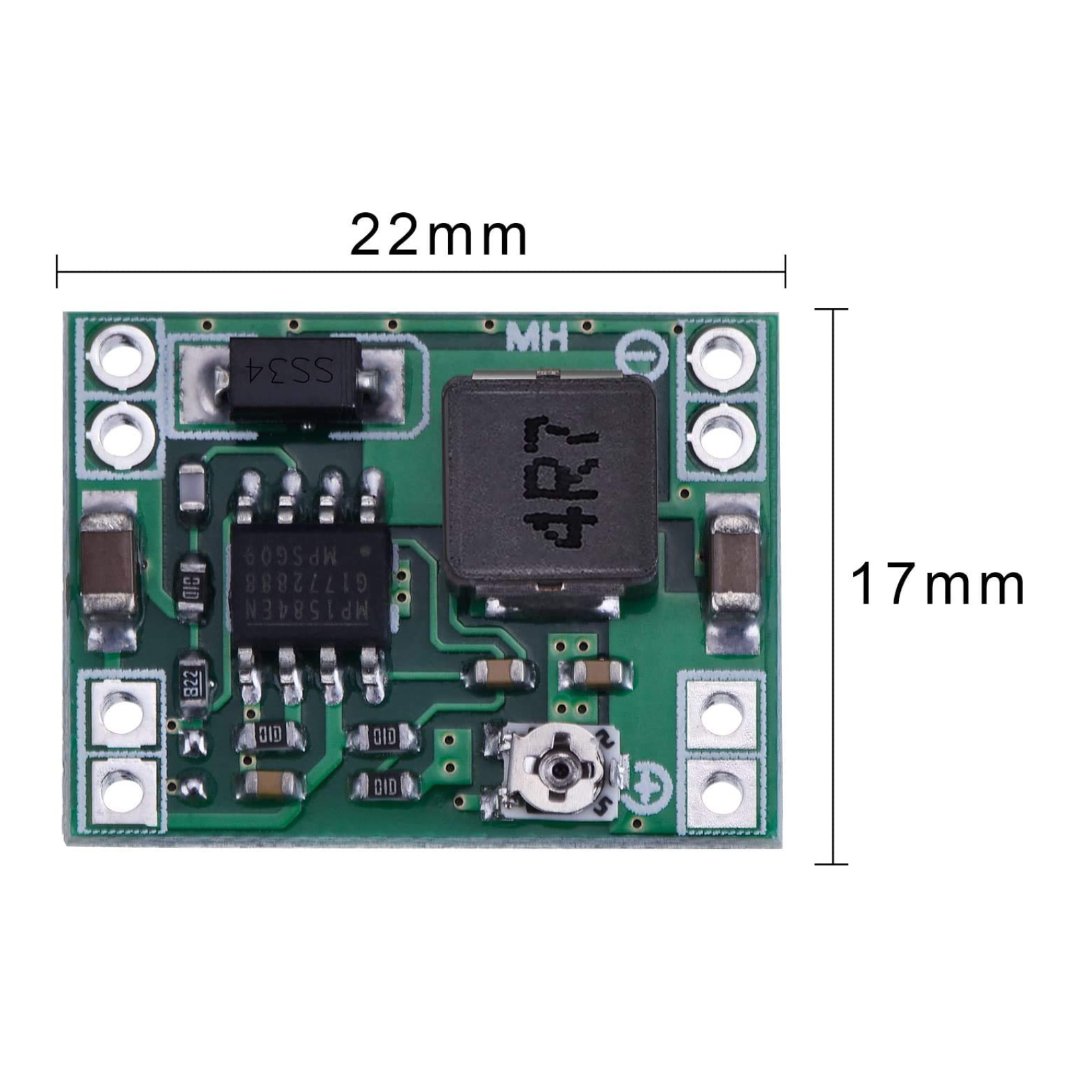

Module Size: 22x17x4mm

Module Type: Non-isolated step-down module

Rectification Mode: synchronous rectification

Input voltage: 4.5 V to 28 V

Output voltage: 0.8 V to 20 V

Output current: 3 A (maximum)

Quantity: 1 Pc

Output ripple: Less than 30 mV

Switching frequency: 1.5 MHz (highest), typically 1 MHz

Operating temperature: -45 ℃ to 85 ℃

Applications:

High Voltage Power Conversion

Automotive Systems

Industrial Power Systems

Distributed Power Systems

Battery Powered Systems
