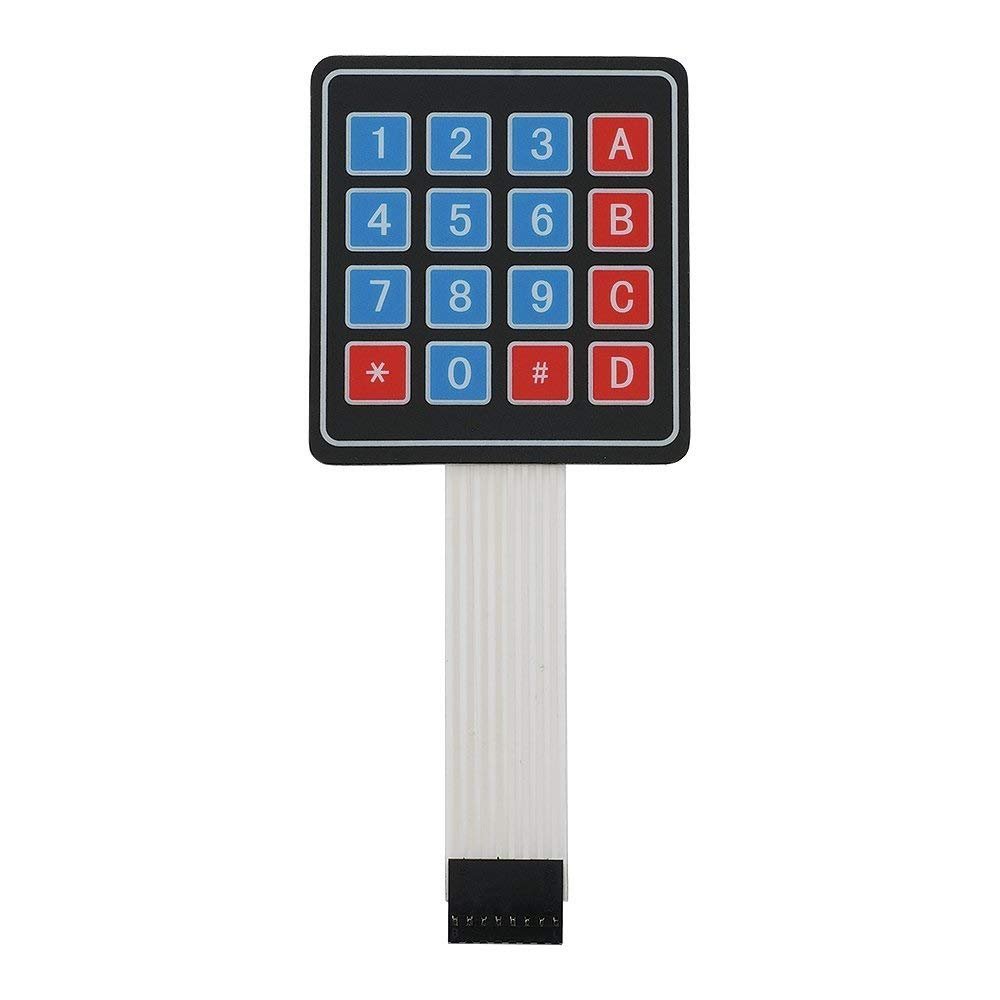

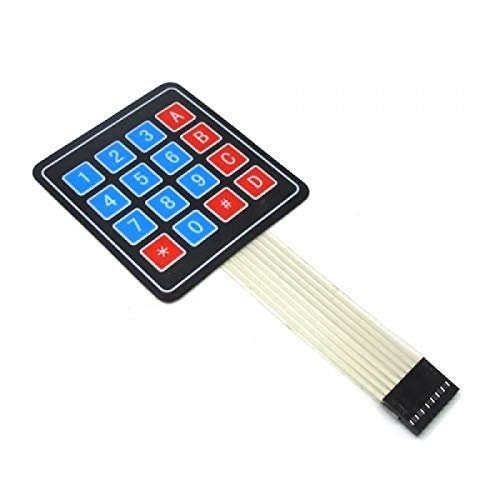

4x4 Matrix Keypad Membrane Switch Arduino, Arm and Other MCU (Pack of 1)

Brand: Robo Inventors

49 review

MRP : ~~450.00~~

Price : 249.00 FREE Delivery ( Inclusive of all taxes )

You Save: 201

Sold By: Unicorpse

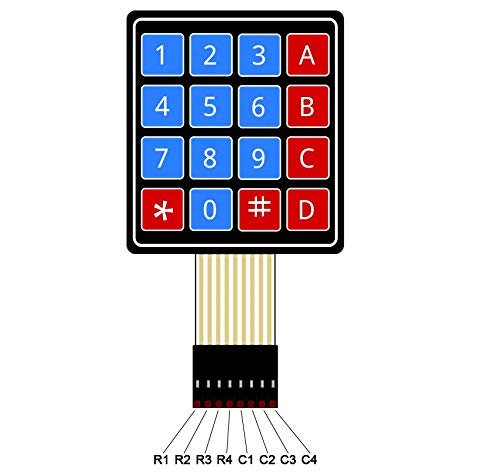

Connector: DuPont 8 pins, 0.1 Inch (2.54mm) pitch
Peel off the white sticker on the back of the keyboard, can be securely affixed to the surface of the chassis
Operation temperature: 20 to plus 40 degree Celsius
Life expectancy: 1 million closures

10 Available

Add to Cart

Buy Now

SKU: TH2069TH145

Categories:Robotics, Sensor

Tags : 4x4 Matrix Keypad

4 x 4 matrix membrane keypad 8 pin connector adhesive mounting maximum circuit rating: 35vDC, 100ma insulation resistance: 100m omh, 100v dielectric withstand: 250vrms (5060hz, 1min) contact bounce: <=5ms life expectancy: 1 million closures operation temperature: 0 to plus 70 centigrade humidity: 40 centigrade, 90 percent 95 percent, 240 hours pad size (l x w): approx. 3 x 2.7 Inch or 76 x 69 mm flexible circuit length: approx. 3.3 Inch or 83 mm.
