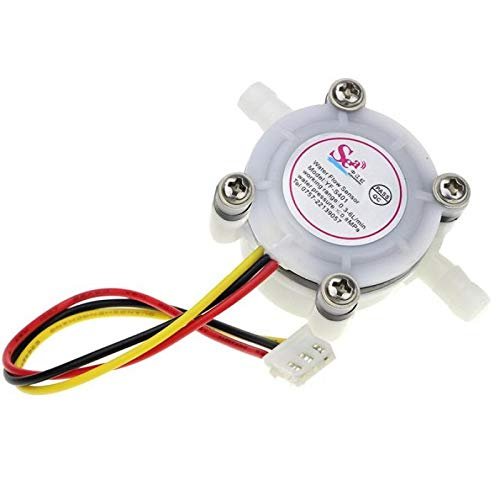

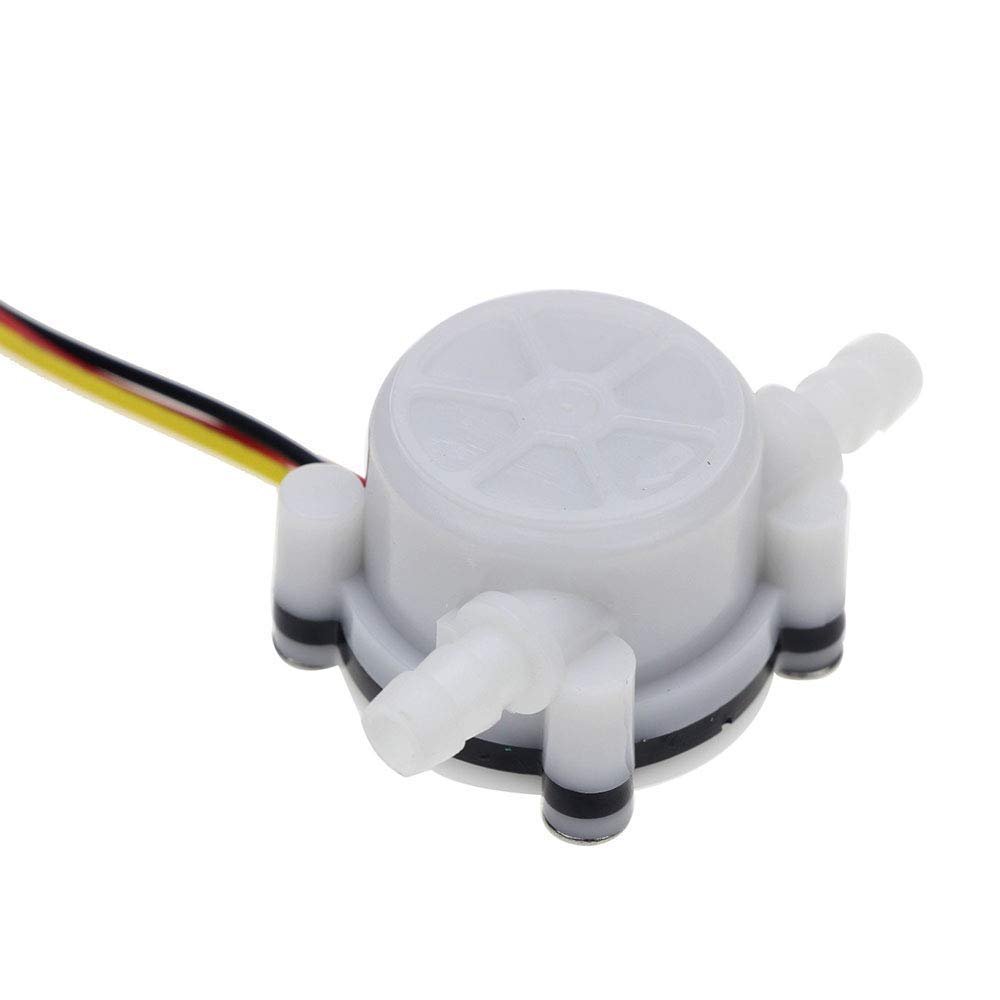

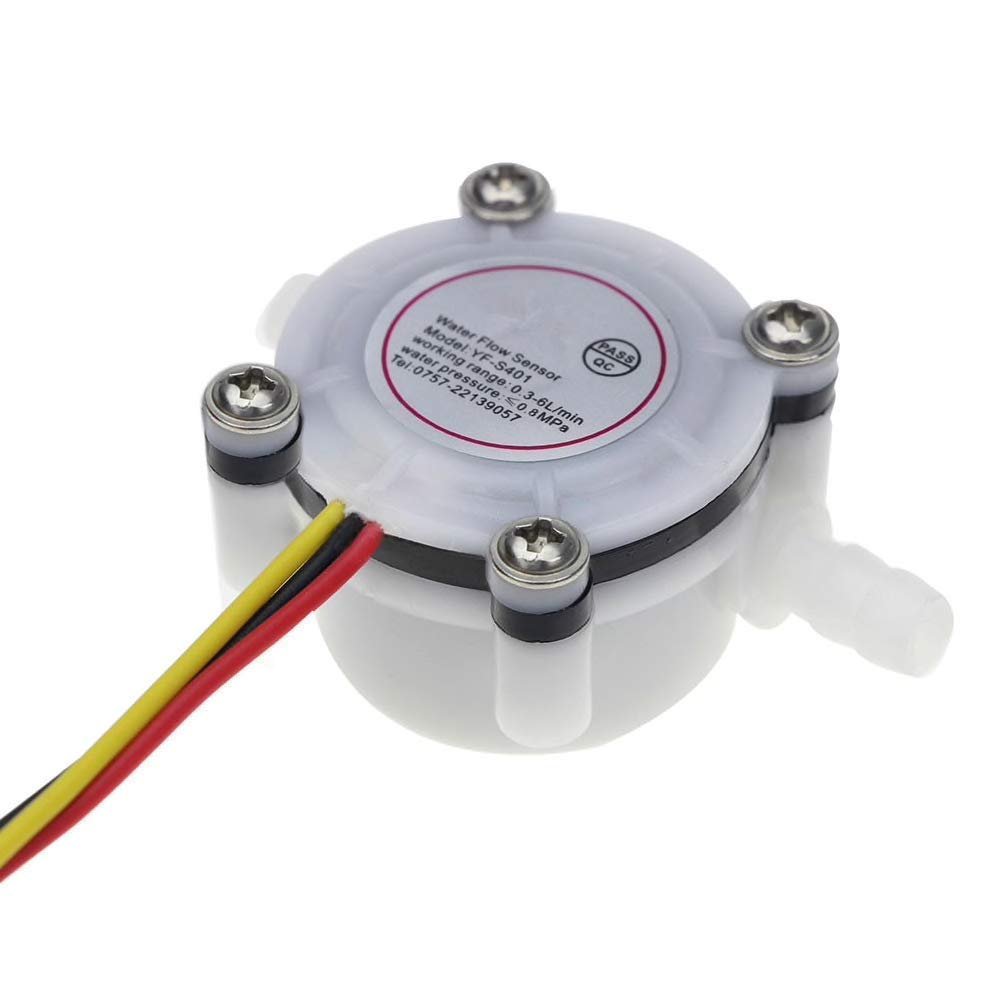

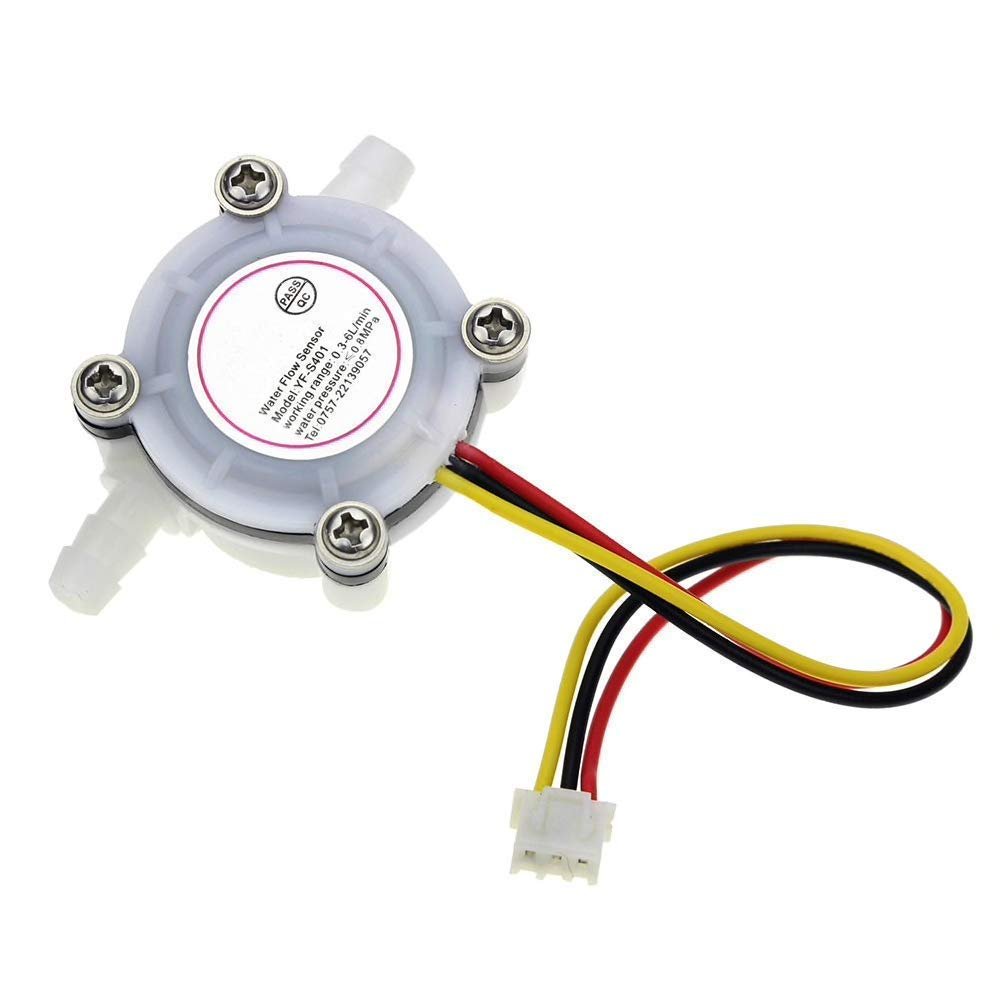

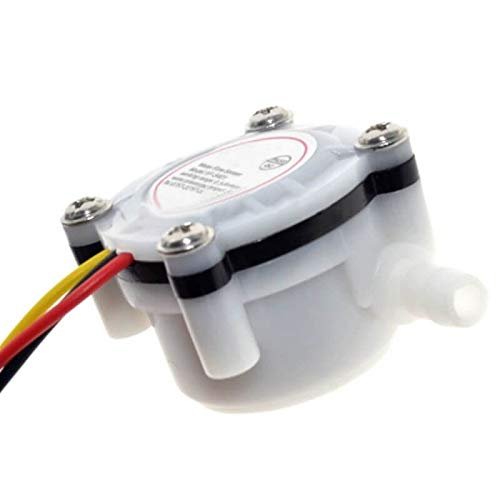

YF-S401 Water Flow Meter Hall Sensor Counter Small - 0.3 to 6 L/min 5VDC

Water flow sensor consists of a plastic valve body, a water rotor, and a hall effect sensor – when water flows through, the internal rotator will change its speed with different rate of flow and hall effect sensor outputs the corresponding pulse signal. Use with laser cutters or CNC to measure if and how much water is flowing through laser tube or CNC spindle for cooling. Specifications: working voltage: dc 5v~24v; maximum working current: 15ma at 5v dc; flow rate range: 0. 3~6L/min; connection: 6mm (external diameter); inlet water pipe diameter: 2. 5-4Mm; load capacity: ≤10ma (dc 5v); operating temperature: ≤80℃; liquid temperature: ≤120℃; operating humidity: 35 percent ～90 percent rh; water pressure: ≤2. 0Mpa; storage temperature: -25～+ 80℃; storage humidity: 25 percent ～95 percent rh; connections - red: power in, black: ground, yellow: signal output.
