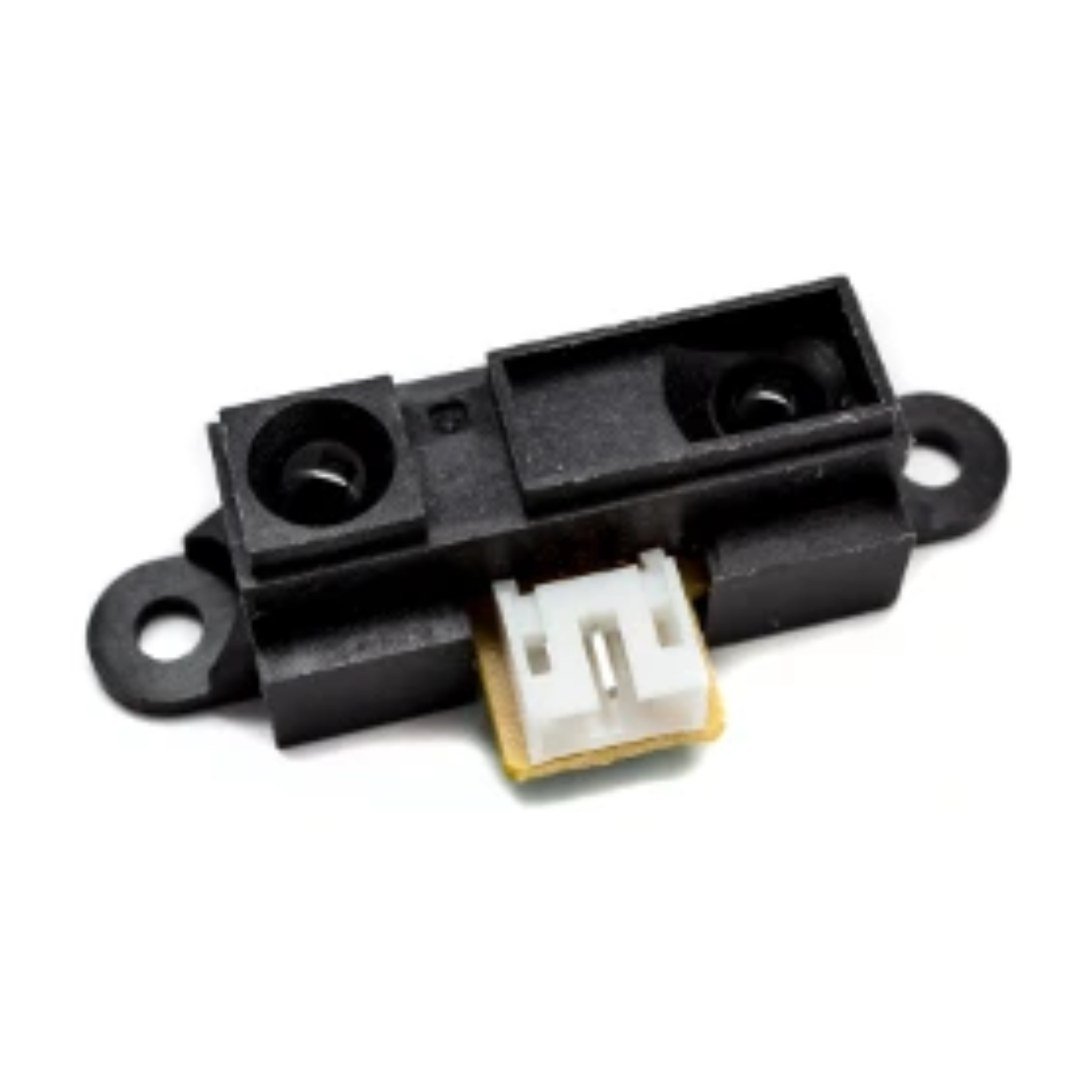

SEN43 Sharp Distance Measuring Sensor Unit 10 to 80 cm, GP2Y0A21YK0F

Description: Gp2y0a21yk0f is a distance measuring sensor unit, composed of an integrated combination of psd (position sensitive detector), ired (infrared emitting diode) and signal processing circuit. The variety of the reflectivity of the object, the environmental temperature and the operating duration are not influenced easily to the distance detection because of adopting the triangulation method. This device outputs the voltage corresponding to the detection distance. So this sensor can also be used as a proximity sensor. Features: 1. Distance measuring range: 10 to 80 cm. 2. Analog output type. 3. Package size: 29.5×13×13.5 mm. 4. Consumption current: Typ. 30 ma. 5. Supply voltage: 4.5 to 5.5 v. Agency approvals/compliance: 1. Compliant with rohs directive (2002/95/ec). Applications: 1. Touch-less switch (sanitary equipment, control of illumination, etc.). 2. Robot cleaner. 3. Sensor for energy saving (atm, copier, vending machine). 4. Amusement equipment (robot, arcade game machine).
