FZ0728 HX711 Weighing Sensor Dual-Channel 24 Bit Precision A/D Module Pressure Sensor Module

Brand: Robo Inventors

45 review

MRP : ~~240.00~~

Price : 149.00 + 50 Delivery charge ( Inclusive of all taxes )

You Save: 91

Sold By: Unicorpse

Two selectable differential input channels, size:40mmx20mm/1.56â€³x0.79â€³(inch) (approx)
On-chip active low noise pga with selectable gain of 32, 64 and 128, current consumption including on-chip analog power supply regulator: Normal operation
On-chip power supply regulator for load-cell and adc analog power supply, 1.5ma, power down < 1ua, operation supply voltage range: 2.6 - 5.5v
On-chip oscillator requiring no external component with optional external crystal, simultaneous 50 and 60hz supply rejection
Selectable 10sps or 80sps output data rate, on-chip power-on-reset, simple digital control and serial interface: Pin-driven controls, no programming needed

10 Available

Add to Cart

Buy Now

SKU: TH1914TH74

Categories:Robotics, Sensor

Tags : FZ0728 HX711,Sensor,Module Pressure Sensor Module

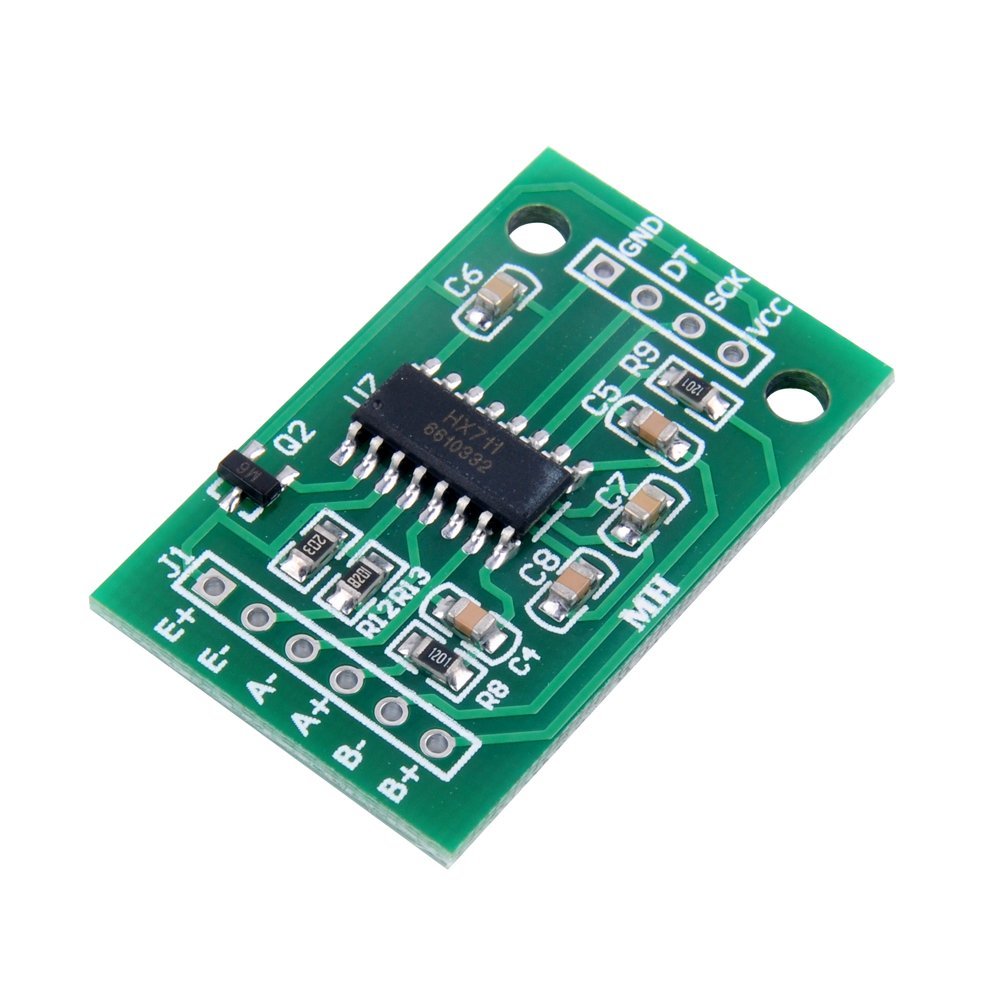

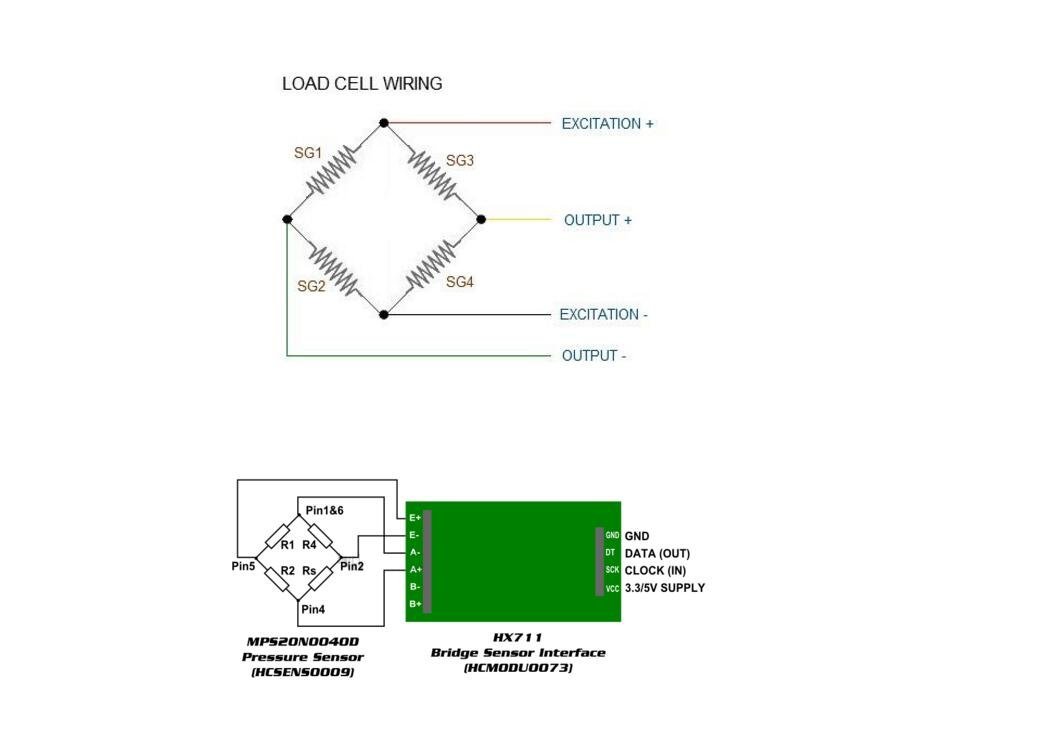

This module uses 24 high precision a/d converter chip hx711. It is a specially designed for the high precision electronic scale design, with two analog input channel, the internal integration of 128 times the programmable gain amplifier. The input circuit can be configured to provide a bridge type pressure bridge (such as pressure, weighing sensor mode), is of high precision, low cost is an ideal sampling front-end module. Application widely used in aerospace, mechanical, electrical, chemical, construction, medicine and many other fields, used to measure force, pressure, displacement, strain, torque, acceleration.

From the manufacturer

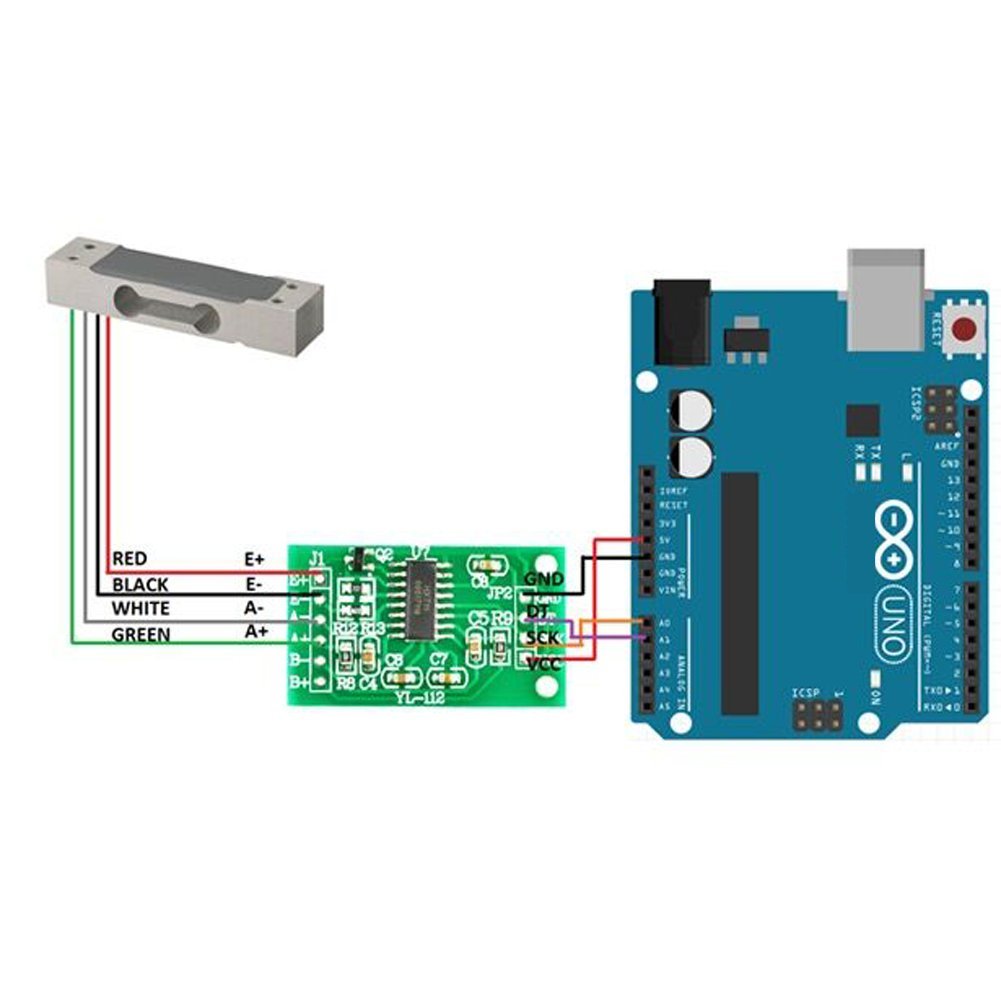

The HX711 Dual-Channel 24 Bit Precision A/D weight Pressure Sensor Load Cell Amplifier and ADC Module is a small breakout board for the HX711 IC that allows you to easily read load cells to measure weight. By connecting the module to your microcontroller you will be able to read the changes in the resistance of the load cell and with some calibration. You’ll be able to get very accurate weight measurements. This can be handy for creating your own industrial scale, process control, or simple presence detection. The HX711 Weighing Sensor uses a two-wire interface (Clock and Data) for communication. Any microcontroller’s GPIO pins should work and numerous libraries have been written making it easy to read data from the HX711. Check the hookup guide below for more information.	Recommended excitation voltage: 5-10V. Two selectable differential input channels. On-chip active low noise PGA with a selectable gain of 32, 64 and 128. On-chip power supply regulator for load-cell and ADC analog power supply. Selectable 10SPS or 80SPS output data rate. On-chip oscillator requiring no external component with optional external crystal. On-chip power-on-reset.
